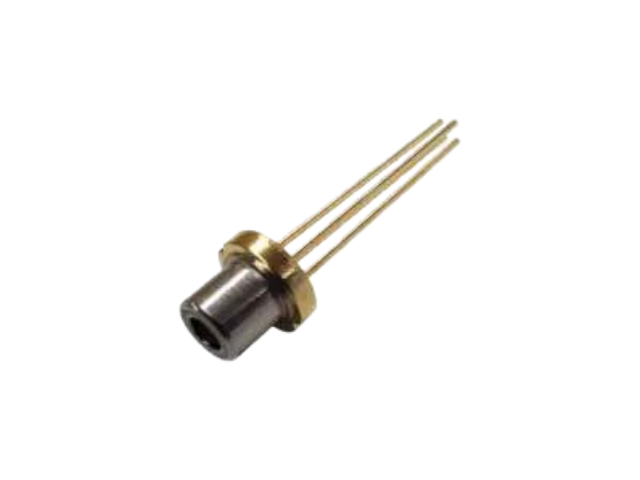

2.5Gbps 1490nm DFB LD TO-CAN（Non-Sphere)
Classification:
· Data rate up to 2.5 Gbps
· 1490nm typical emission wavelength
· Wide temperature range operation from -5°C to+85°C
· TO56 package with 7.5mm focus length aspherical lens
· Uncooled DFB LD chips
Contact:
Features
· Data rate up to 2.5 Gbps
· 1490nm typical emission wavelength
· Wide temperature range operation from -5°C to+85°C
· TO56 package with 7.5mm focus length aspherical lens
· Uncooled DFB LD chips
Applications
· Data communications
· SDH telecommunications
· Other optical transmission system
Parameter
Absolute Maximum Ratings
| Parameters | Symbol | Min | Max | Unit |
| Reverse Voltage(Laser Diode) | VRL | 2 | V | |
| Laser Forward Current | Iop | - | 100 | mA |
| Peak Optical Output Power | Po | - | 20 | mW |
| Operating Temperature | Top | -5 | 85 | ℃ |
| Storage Temperature | TSTG | -40 | 100 | ℃ |
| ESD Voltage | HBM≥500 | V | ||
Electrical/Optical Characteristics ( T=25℃ )
| Parameters | Symbol | Test conditions | Min | Typ | Max | Unit |
| Optical Output Power | Po | CW,Ith+20mA | 6 | - | - | mW |
| Threshold Current | Ith | CW,Tc=25℃ | - | - | 15 | mA |
| CW,Tc=85℃ | - | - | 30 | |||
| Operating Voltage | Vop | CW,Ith+20mA | - | - | 2 | V |
| Slope Efficiency | SE | CW,Ith+20mA | 0.3 | - | - | W/A |
| Center Wavelength | λ | CW,Ith+20mA | 1480 | 1490 | 1500 | nm |
| Spectrum Width (-20dB) | Δλ | - | 1.0 | nm | ||
| Side-mode Suppression Ratio | SMSR | 35 | - | dB | ||
| Series Resistance | Rs | CW,Ith+5 to Ith+20mA | - | - | 15 | Ohm |
| Po-Kink | - | CW,Ith+5 to 70mA | - | - | 30 | % |
| Monitor Current (MPD) | Im | CW,Ith+20mA | 100 | - | 1000 | uA |
| Dark Current (MPD) | Id | Vr=5V | - | - | 100 | nA |
|
Distance between Reference
Plane to Fiber |
FL | 7.2 | 7.5 | 7.8 | mm |
Outline Drawings ＆ Pin Connection Type
