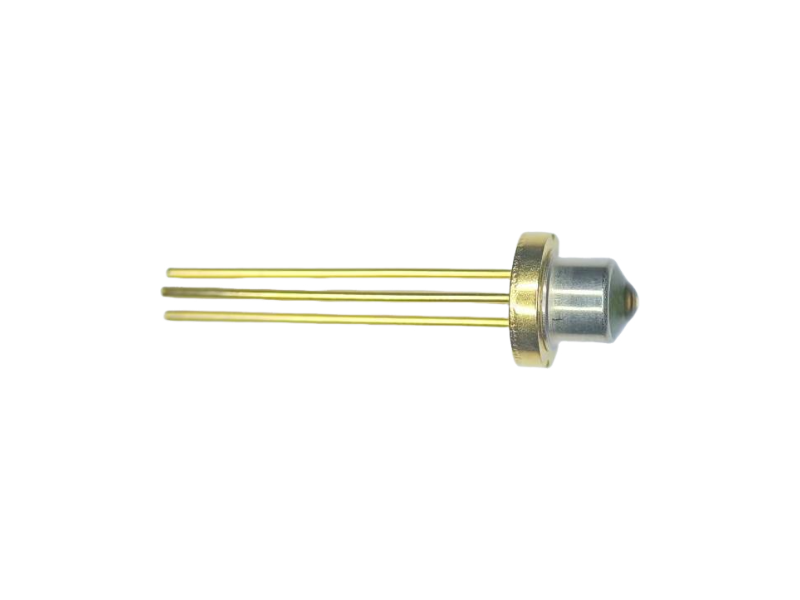

2.5Gbps 1310nm DFB LD TO-CAN（Large ball)
Classification:
· Data rate up to 2.5 Gbps
· 1310nm typical emission wavelength
· Wide temperature range operation from -20°C to+85°C
· TO56 package with Φ2.0mm/2.0 refractivity ball lens without coating
· Uncooled DFB LD chip
Contact:
Features
· Data rate up to 2.5 Gbps
· 1310nm typical emission wavelength
· Wide temperature range operation from -20°C to+85°C
· TO56 package with Φ2.0mm/2.0 refractivity ball lens without coating
· Uncooled DFB LD chip
Applications
· Data communications
· SDH telecommunications
· Other optical transmission system
Parameter
Absolute Maximum Ratings
| Parameters | Symbol | Min | Max | Unit |
| Reverse Voltage (Laser Diode) | VRL | 2 | V | |
| Laser Forward Current | Iop | - | 100 | mA |
| Operating Temperature | Top | -20 | 85 | ℃ |
| Storage Temperature | TSTG | -40 | 100 | ℃ |
| ESD Voltage | HBM≥500 | V | ||
Electrical/Optical Characteristics ( T=25℃ )
| Parameters | Symbol | Test conditions | Min | Typ | Max | Unit |
| Optical Output Power | Po | CW,Ith+20mA | 7 | - | - | mW |
| Threshold Current | Ith | CW,Tc=25℃ | - | 10 | 9.5 | mA |
| Operating Voltage | Vop | CW,Ith+20mA | - | 1.2 | 1.5 | V |
| Center Wavelength | λ | CW,Ith+20mA; | 1290 | 1310 | 1330 | nm |
| Spectrum Width (-20dB) | Δλ | - | - | 1.0 | nm | |
| Side-mode Suppression Ratio | SMSR | 35 | - | - | dB | |
| Series Resistance | Rs | CW,Ith+5 to Ith+20mA | 15 | Ohm | ||
| Po-Kink | - | CW,Ith+5 to 70mA | - | 30 | % | |
| Monitor Current (MPD) | Im | CW,Ith+20mA | 150 | - | 1000 | mA |
| Dark Current(MPD) | Id | Vr=5V | - | - | 100 | nA |
|
Distance between Reference Plane to Fiber |
FL | - | 6.3 | 6.5 | 6.7 | mm |
Outline Drawings ＆ Pin Connection Type
